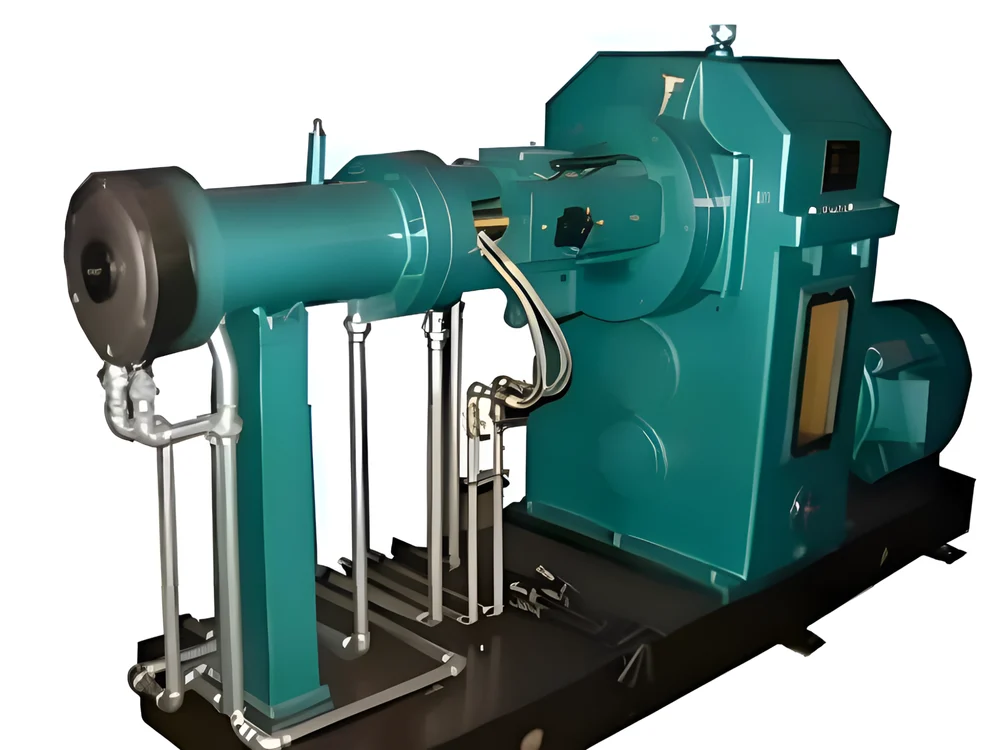

40 mm Hot Feed Rubber Extruder Machine
₹ 8,00,000 / Piece
| Screw Size | 2 Inch |
| L/D Ratio | 4.5:1 |
| Capacity | 120 Kg/Hr |
| Motor Power | 10 HP |
| Screw Speed | 45 RPM |
| Material | Mild Steel |
| Condition | New |
| Country of Origin | Made in India |
- Requires preheated rubber compounds for optimal processing
- Rotating screw design with optimized pitch for extrusion speed and pressure
- Interchangeable dies for various profiles, strips, tubes, and shapes
- Hot rubber is softened and made pliable for easy die forming
- Custom screw designs available based on rubber compound requirements

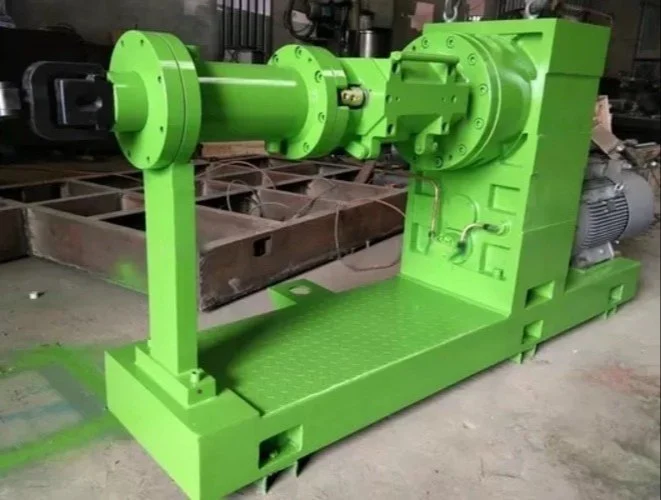

100 mm Hot Feed Rubber Extruder
₹ 10,00,000 / Piece
| Screw Size | 4 Inch |
| L/D Ratio | 1:16 |
| Capacity | 300-500 Kgs/hrs |
| Motor Power | 60 HP |
| Condition | New |
| Country of Origin | Made in India |
- Adaptable head design for multiple dies application
- Dual start screw with 45-50 HRC hardness with hard chrome plating for better wear resistance
- Easily detachable screw for cleaning purpose
- 40 HRC barrel to withstand rubber pressure and wear
- Feed roll to feed rubber strip, no need to apply manual force
- Water/oil circulation to barrel for cooling and heating respectively
- Production Capacity: 300-500 Kgs/Hrs

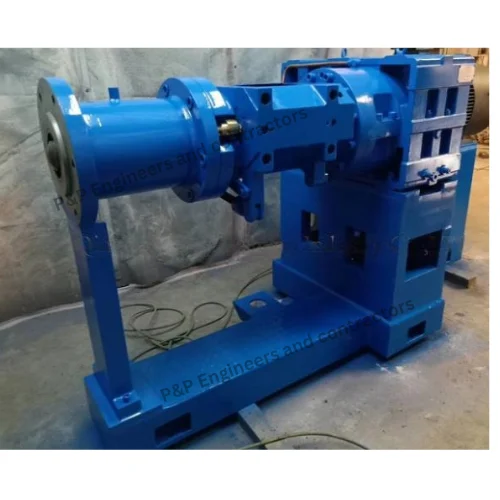

125 mm Hot Feed Rubber Extruder
₹ 19,00,000 / Piece
| Screw Size | 5 Inch |
| L/D Ratio | 6:1 |
| Capacity | 200-400 Kgs/hrs |
| Motor Power | 75 HP |
| Screw Speed | 50 RPM |
| Screw Diameter | 125 mm |
| Temperature Range | 50°C to 250°C |
- Screw Diameter: 125 mm with 6:1 L/D ratio optimized for rubber processing
- Motor Power: 75 HP with variable frequency drive for precise speed control
- Output Capacity: Up to 1200 kg/hr with consistent extrusion quality
- Barrel Heating: Electrical heaters or oil circulation with integrated water cooling
- Die Type: Interchangeable dies for profiles, sheets, or specific products
- Control System: PLC-based with temperature, pressure, and speed monitoring
200 mm Hot Feed Rubber Extruder
₹ 21,00,000 / Piece
| Screw Size | 8 Inch |
| L/D Ratio | 6:1 |
| Capacity | 800 -1000 Kgs/hr |
| Motor Power | 100 HP |
| Screw Speed | 60 RPM |
| Condition | New |
| Country of Origin | Made in India |
- Designed for processing pre-heated rubber compounds with efficient hot-feed system
- High-torque, wear-resistant screw with customizable profiles
- Advanced heating zones along the barrel for precise temperature management
- Interchangeable extrusion dies for different profiles, sheets, or shapes
- Powerful 100 HP motor with variable speed control
- Rugged construction with corrosion-resistant materials
- User-friendly control panel with digital displays and safety features

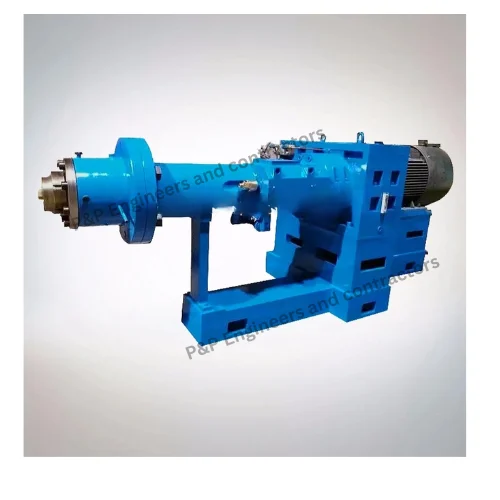

4.5inch Hot feed Rubber Extruder Machine
Product Brochure Available
Ask Price
| Screw Diameter | 110 mm |
| L/D Ratio | 6:1 |
| Screw Speed | 50 RPM |
| Motor Power | 75 HP |
| Temperature Range | 50°C to 250°C |
| Output Capacity | 1200 kg/hr |
| Country of Origin | Made in India |
- Screw Diameter: 110 mm with 6:1 L/D ratio optimized for rubber processing
- Motor Power: 75 HP with variable frequency drive for precise speed control
- Barrel Heating: Electrical heaters or oil circulation, temperature range 50°C to 250°C
- Die Type: Interchangeable dies for profiles, sheets, or specific products
- Barrel Material: Nitrided or hardened steel for wear resistance
- Screw Material: Hardened steel or bimetallic construction for enhanced durability
- Control System: PLC-based with temperature, pressure, and speed monitoring
- Applications: Extruding sheets, tubes, profiles, cords, and preforming compounds
