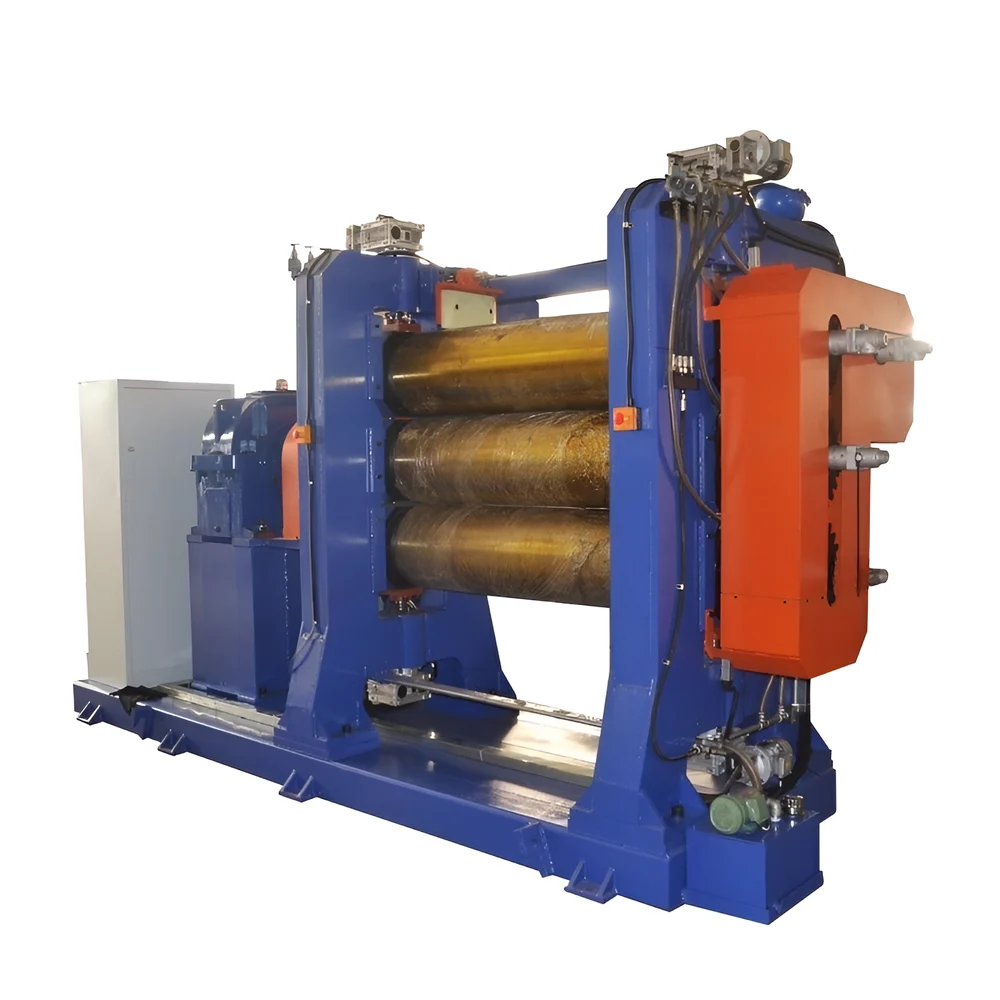

8 X 24 Three Roll Rubber Calender Machine
₹ 7,00,000 / Piece
| Roll Size | 8 x 24 Inch |
| Motor Rating | 10 HP |
| Roll Type | Three Roll |
| Rolling Thickness | 0.2 mm |
| Nip Adjustment | Motorized |
| Roll Material | Chilled Cast Iron (Shore 70-75) |
| Condition | New |
| Country of Origin | Made in India |
- Roll Configuration: 3 rolls, 8" diameter x 24" length, chilled cast iron
- Roll Speeds: Top: 27 RPM, Middle: 29 RPM, Bottom: 33 RPM
- Drive System: 10 HP electric motor with variable speed control
- Heating System: Steam or electric, 150°C to 200°C with PID control
- Nip Adjustment: Motorized with ±0.01 mm precision
- Safety Features: Emergency stops, overload protection, roll reversal
- Control Panel: PLC controlled with HMI display (optional)
12 x 36 Three Roll Rubber Calender Machine
₹ 12,00,000 / Piece
| Roll Size | 12 x 36 Inch |
| Motor Rating | 30 HP |
| Roll Type | Three Roll |
| Nip Adjustment | Motorized |
| Roll Material | Chilled Cast Iron (Shore 70-75) |
| Condition | New |
| Country of Origin | Made in India |
- Roll Configuration: 3 rolls, 12" diameter x 36" length, chilled cast iron
- Roll Speeds: Top: 27 RPM, Middle: 29 RPM, Bottom: 33 RPM
- Drive System: 30 HP electric motor with variable speed control
- Heating System: Steam or electric, 150°C to 200°C with PID control
- Nip Adjustment: Motorized with ±0.01 mm precision, max gap 25 mm
- Cooling System: Water-cooled rolls with internal passages
- Safety Features: Emergency stops, overload protection, automatic roll reversal
10 X 30 Three Roll Rubber Calender Machine
₹ 1,45,000 / Piece
| Roll Size | 10 x 30 Inch |
| Motor Rating | 20 HP |
| Roll Type | Three Roll |
| Nip Adjustment | Motorized |
| Roll Material | Chilled Cast Iron (Shore 70-75) |
| Condition | New |
| Country of Origin | Made in India |
- Roll Configuration: 3 rolls, 10" diameter x 30" length, chilled cast iron
- Roll Speeds: Top: 27 RPM, Middle: 29 RPM, Bottom: 33 RPM
- Drive System: 20 HP electric motor with variable speed control
- Heating System: Steam or electric, 150°C to 200°C with PID control
- Nip Adjustment: Motorized with ±0.01 mm precision
- Safety Features: Emergency stops, overload protection, safety guards
- Optional Features: ATC system, chrome plating, self-aligning bearings

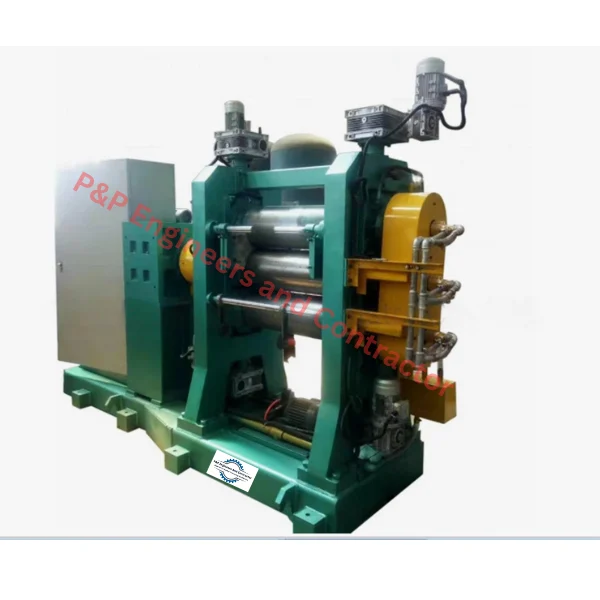

14 X 42 Three Roll Rubber Calender Machine
₹ 2,50,000 / Piece
| Roll Size | 14 x 42 Inch |
| Motor Rating | 40 HP |
| Roll Type | Three Roll |
| Nip Adjustment | Motorized |
| Roll Material | Chilled Cast Iron (Shore 70-75) |
| Condition | New |
| Country of Origin | Made in India |
- Roll Configuration: 3 rolls, 14" diameter x 42" length, chilled cast iron
- Roll Speeds: Top: 27 RPM, Middle: 29 RPM, Bottom: 33 RPM
- Drive System: 40 HP electric motor with variable speed control
- Heating System: Steam or electric, 150°C to 200°C with PID control
- Nip Adjustment: Motorized with ±0.01 mm precision
- Cooling System: Water-cooled rolls with internal passages
- Safety Features: Emergency stops, overload protection, roll reversal
