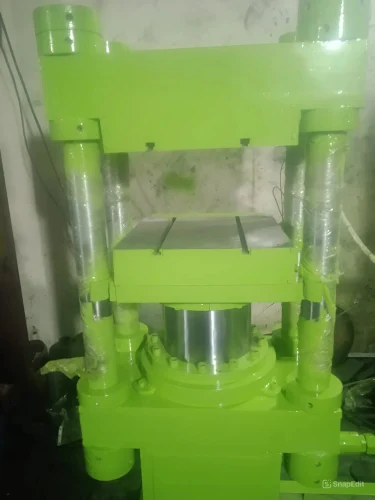

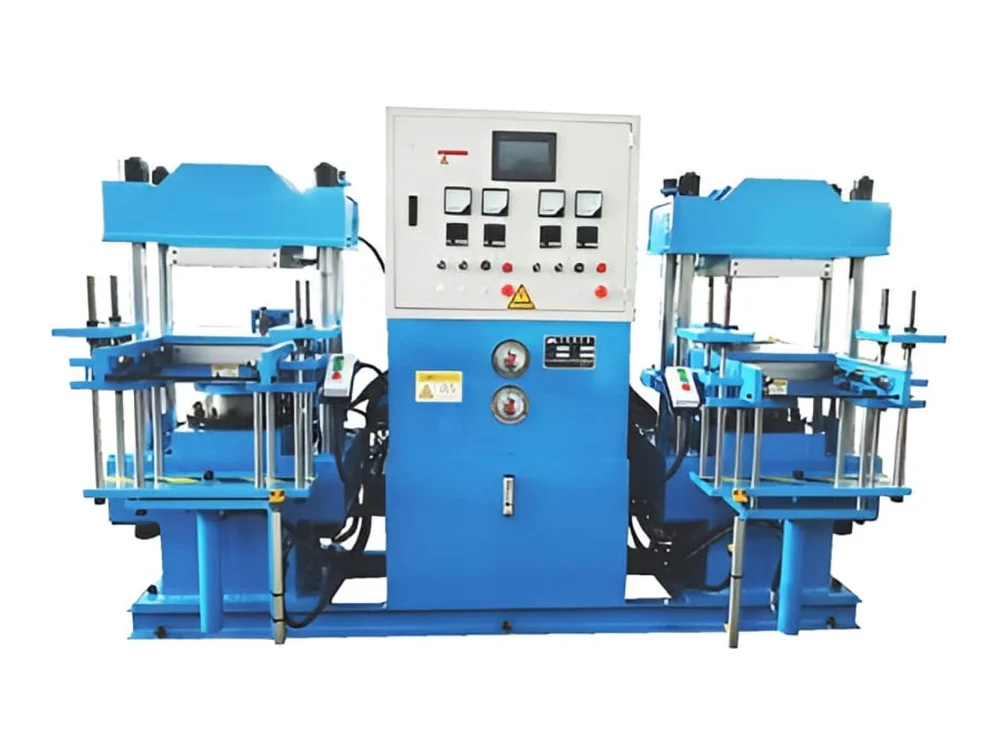

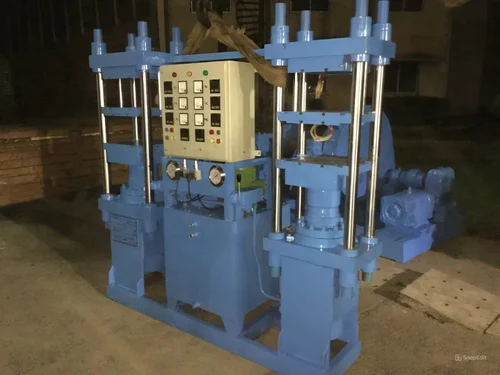

Hydraulic Rubber Moulding Machine
₹ 3,00,000 / Piece
Minimum Order Quantity: 1 Piece
| Capacity (T) | 100 Ton |
| Automation Grade | Fully Automatic |
| Material | Mild Steel |
| Voltage (V) | 440 |
| Usage/Application | Industrial |
| Frame Type | Pillar And Frame |
| Hydraulic Presses Force | 300 kg/cm² |
- Compression Moulding from 50 Tons to 400 Tons
- Pillar type and frame type options available
- Production Capacity: Min 50 kgs per hour
- Fully automatic operation for consistent quality
- Industrial grade construction for durability

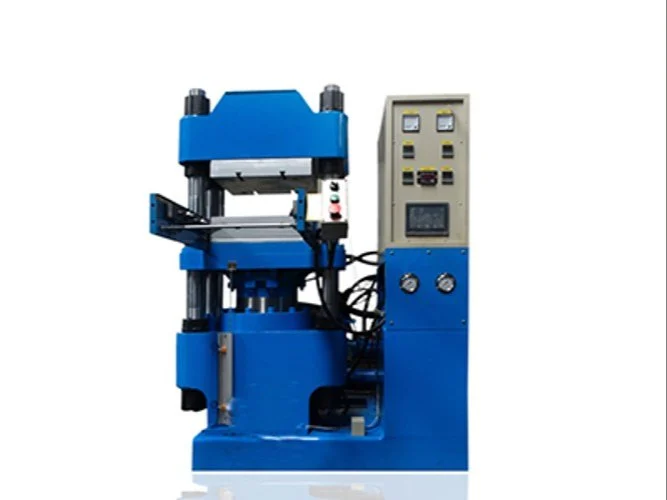

200 Ton Rubber Compression Moulding Machine
₹ 8,10,000 / Piece
| Machine Type | H-Type Frame |
| No. of Station | Double |
| Heating of Platens | Electrical Heater |
| Power Source | Electric |
| Product Capacity | 200 Ton |
| Voltage | 440 V |
- The machine can apply a clamping force of 200 tons, holding the mold firmly in place during compression process
- High force ensures rubber material flows uniformly into every cavity of the mold
- Suitable for manufacturing medium to large rubber components
- Handles complex mold designs with precision
- Curing process (vulcanization) ensures rubber retains shape and physical properties after molding
Hydraulic Rubber Moulding Press
Product Brochure Available
₹ 7,00,000 / Piece
| Moulding Type | Compression |
| Max Force or Load | 100 Ton |
| Clamping Force | 500 ton |
| Automation Grade | Automatic |
| Platen Size | 600 x 600 mm |
| Machine Type | 4-Pillar Type |
| No. of Station | Single |
| Daylight Opening | 1000 mm |
| Heating Type | Electrical |
- High-performance rubber transfer molding machine for precision manufacturing of complex components
- Ideal for applications requiring embedded inserts or intricate shapes
- Clamping Force: 50–300 Tons (customizable)
- Platen Size: 300 x 300 mm to 1000 x 1000 mm
- Maximum Mold Opening: Up to 600 mm
- Injection Pressure: 50–200 kg/cm²
- Heating System: Electric or steam heating, temperature range up to 300°C
- PLC-based control panel with touchscreen interface
