Rubber Intermix Machine Rotor
Get Latest Price
| Motor Power | 25-150 HP |
| Capacity | 35kg-250kg |
| Drive Type | Direct Drive |
| Friction Ratio | 1:1.12 |
| Roll Size | 200mm-500mm |
| Brake Type | Electro Magnetic Brakes |
| Motor Speed | 1000 RPM |
| Condition | New |
Product Description:
Our Rubber Intermix Machine Rotors feature intermeshing rotor design for intensive mixing and homogenization of rubber compounds. The rotors mesh with each other and the mixing chamber wall, creating high shear forces for superior dispersion. Available in 2-wing or 4-wing configurations with helical or spiral profiles for optimized material flow.
Technical Specifications:

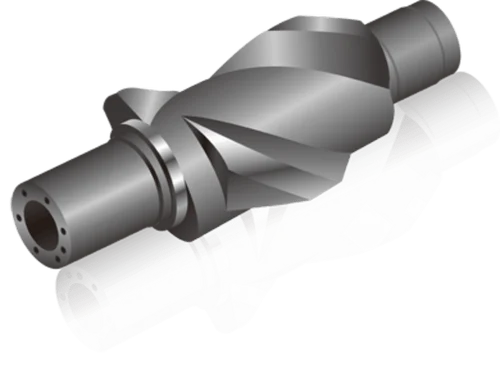

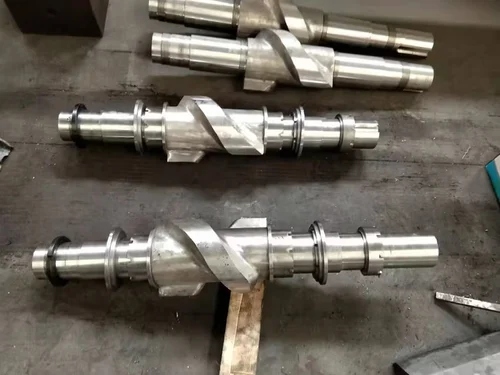

1. Rotor Design
- Type: Intermeshing Rotor for intensive mixing and homogenization
- Rotor Wings: 2-wing or 4-wing configurations depending on application
- Profile: Helical or spiral profiles for optimized material flow
- Material: Chrome steel, tool steel, or special alloy steel with high wear resistance
- Surface Hardness: HRC 55–65 for high wear resistance
2. Rotor Speed & Dimensions
- Front Rotor Speed: 25–35 RPM (slow-speed)
- Differential Speed Ratio: 1.1:1 to 1.25:1 (Front-to-Rear)
- Rotor Diameter: 300 mm to 800 mm for industrial Intermix machines
- Wing Thickness: 20 mm to 50 mm depending on size
- Rotor Clearance: 1.5 mm to 3 mm from chamber wall
- Inter-rotor Clearance: 1 mm to 2 mm for efficient intermeshing

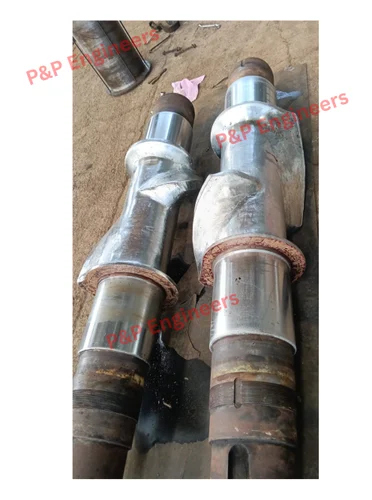

3. Cooling System
- Cooling Channels: Internal channels for water or oil circulation
- Temperature Control: 40°C to 100°C to prevent overheating
- Corrosion Resistance: Anti-corrosion coatings (chromium plating)
4. Load Capacity
- Torque: High torque capacity for high-viscosity rubber compounds
- Mixing Volume: 20 liters to 300 liters or more
